TP1

The diagram below shows the protrusion and open/close movement of the condylar hinge axis.
When both lines overlap, it indicates that the recording was done correctly.



 The therapeutic position was recorded on the Gothic Arch. As you can see, the TP is not in front of the arrow, but somewhere in the middle.

I performed the condylography measurement and found that the therapeutic position is at approximately 2.74 mm on the right side and 1.24 mm on the left side from the reference position (RP).

 Please check the condylographic tracings.







The Gothic arch was designed on these tracings, and the therapeutic position was fixed based on these designs.
The results of the condylar reposition are shown in the pictures below!

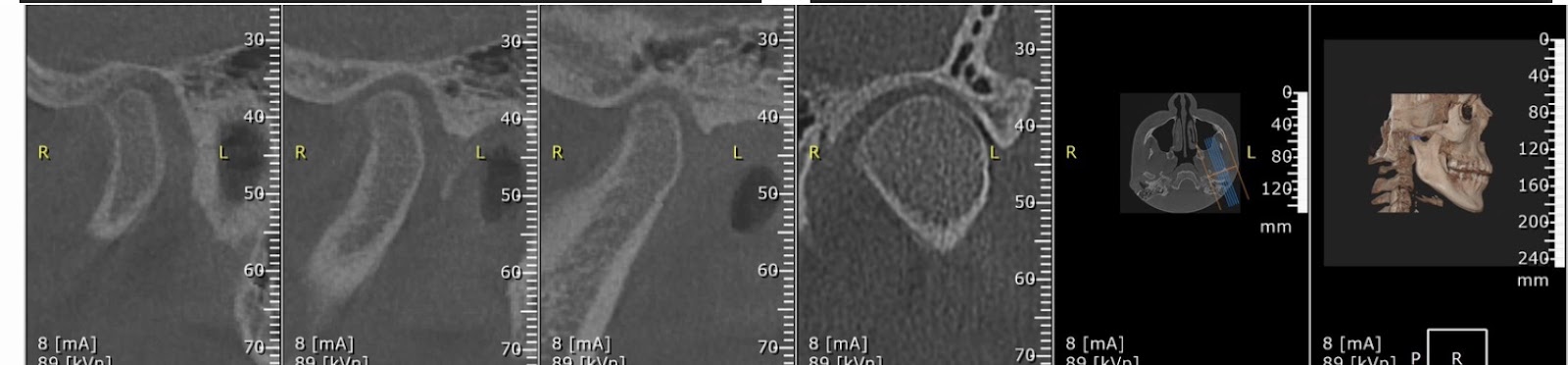

Right side
Before condylar reposition
After condylar repositioning




                                                                           Left side
Before condylar repositioning
After condylar repositioning
